Line and Point Laser Level-P1P20

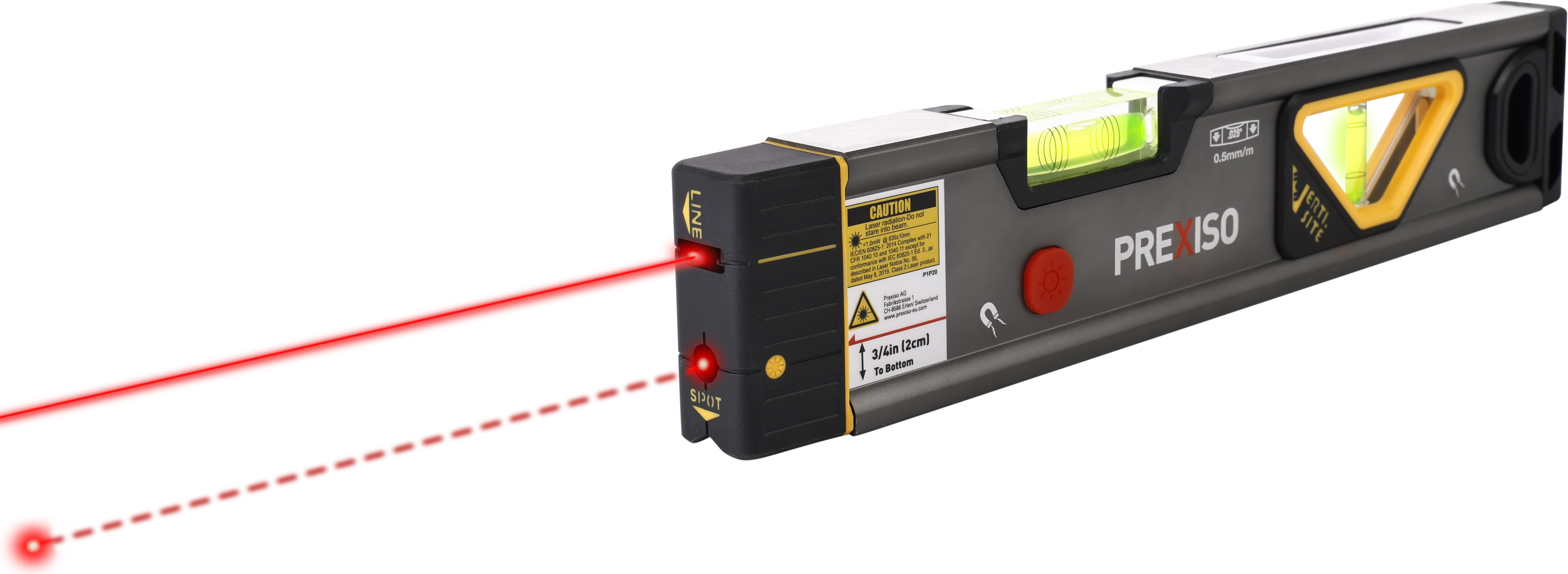

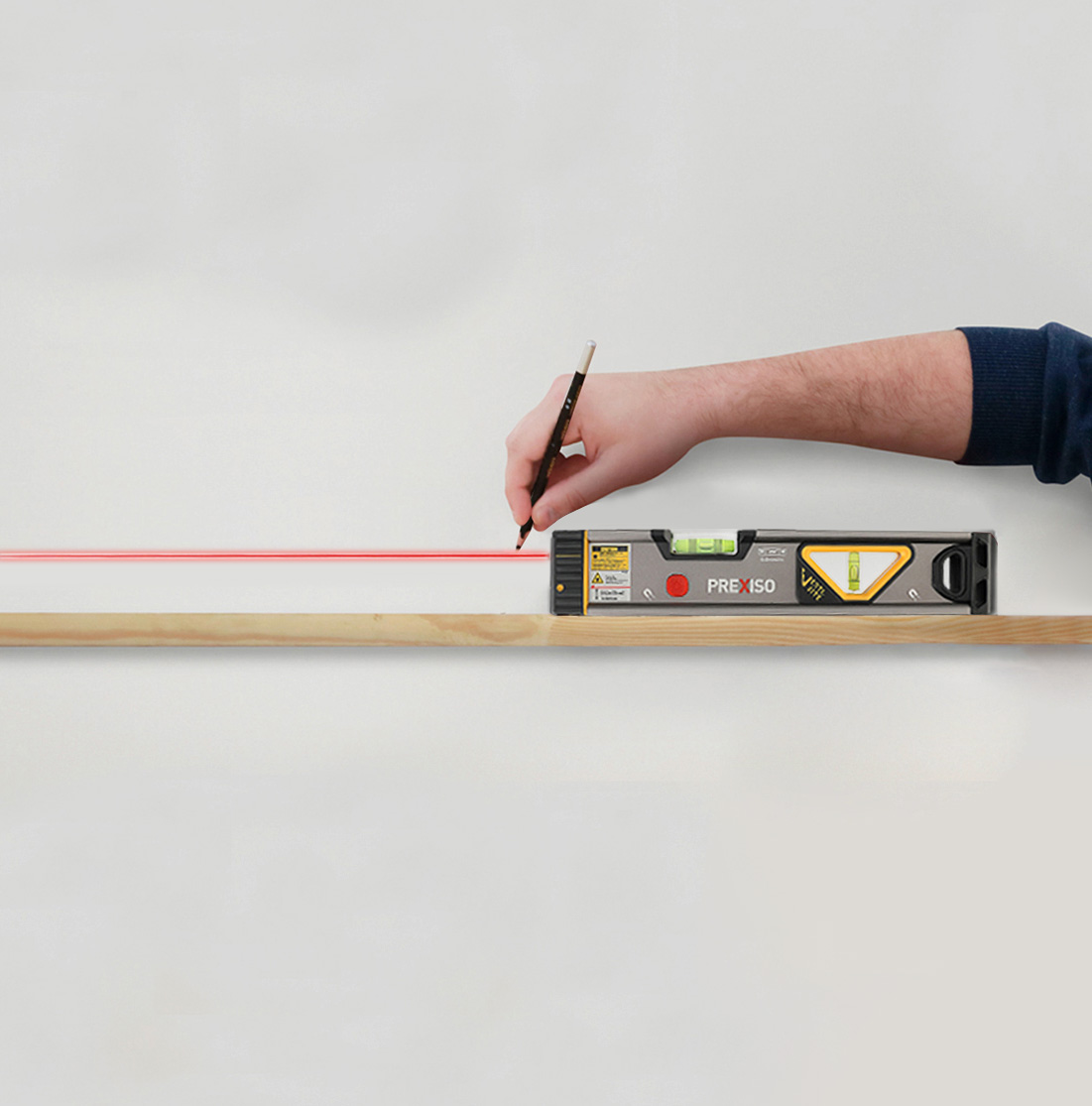

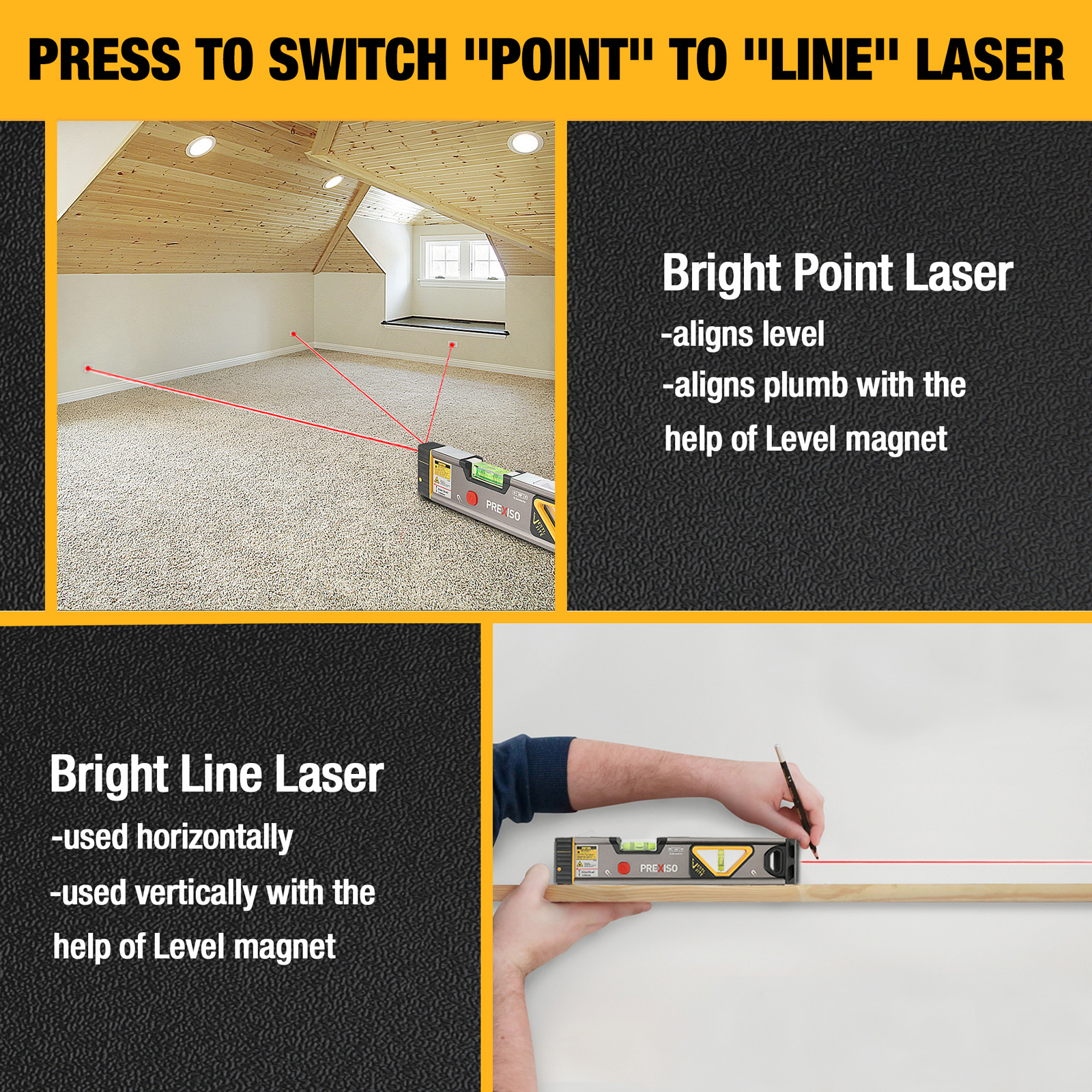

●The line and point laser level is a great tool for leveling and alignment.

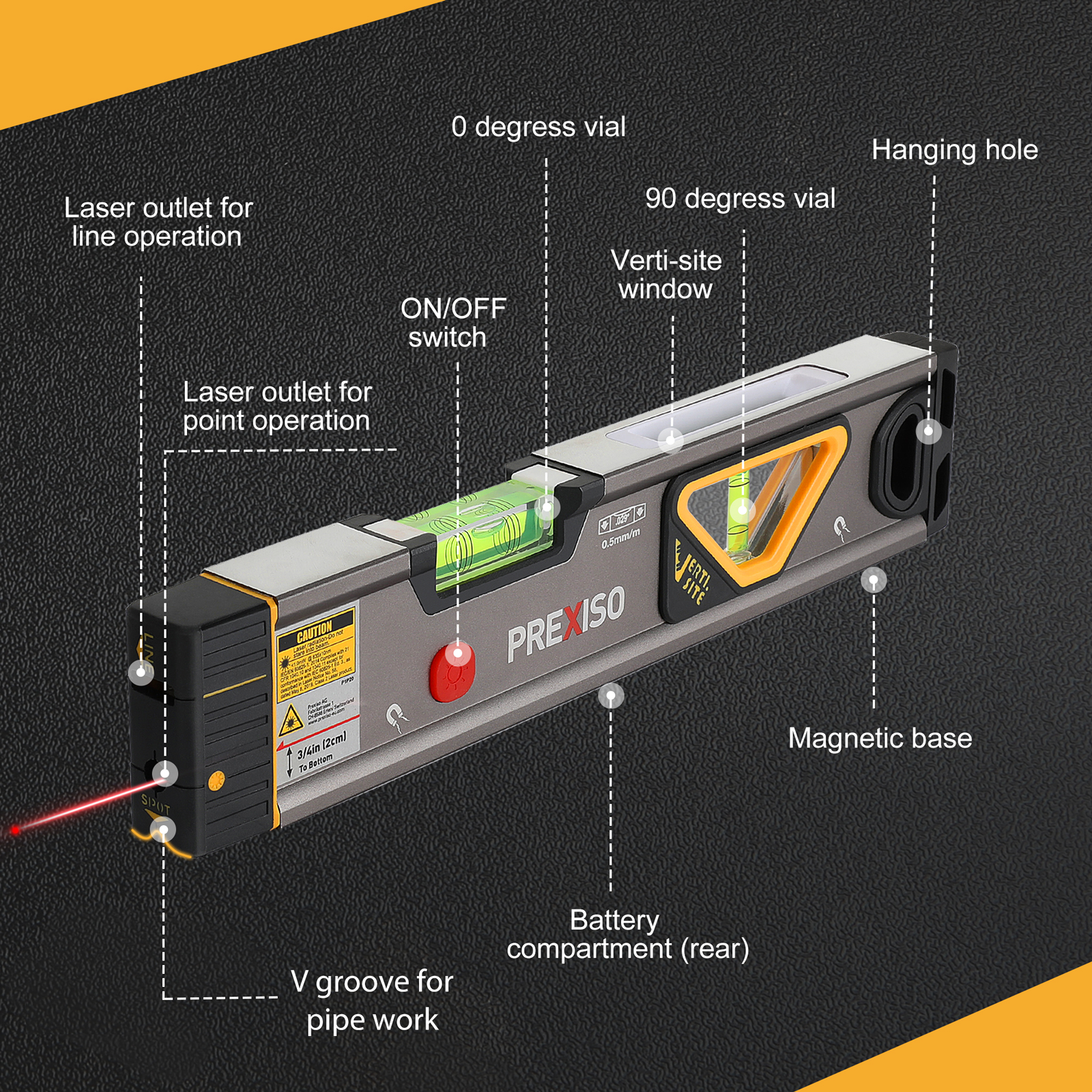

●One 180° built-in bubble vial and one triangular bubble vial with triangular mirror are handy for horizontal, vertical or angular applications with quick and accurate leveling.

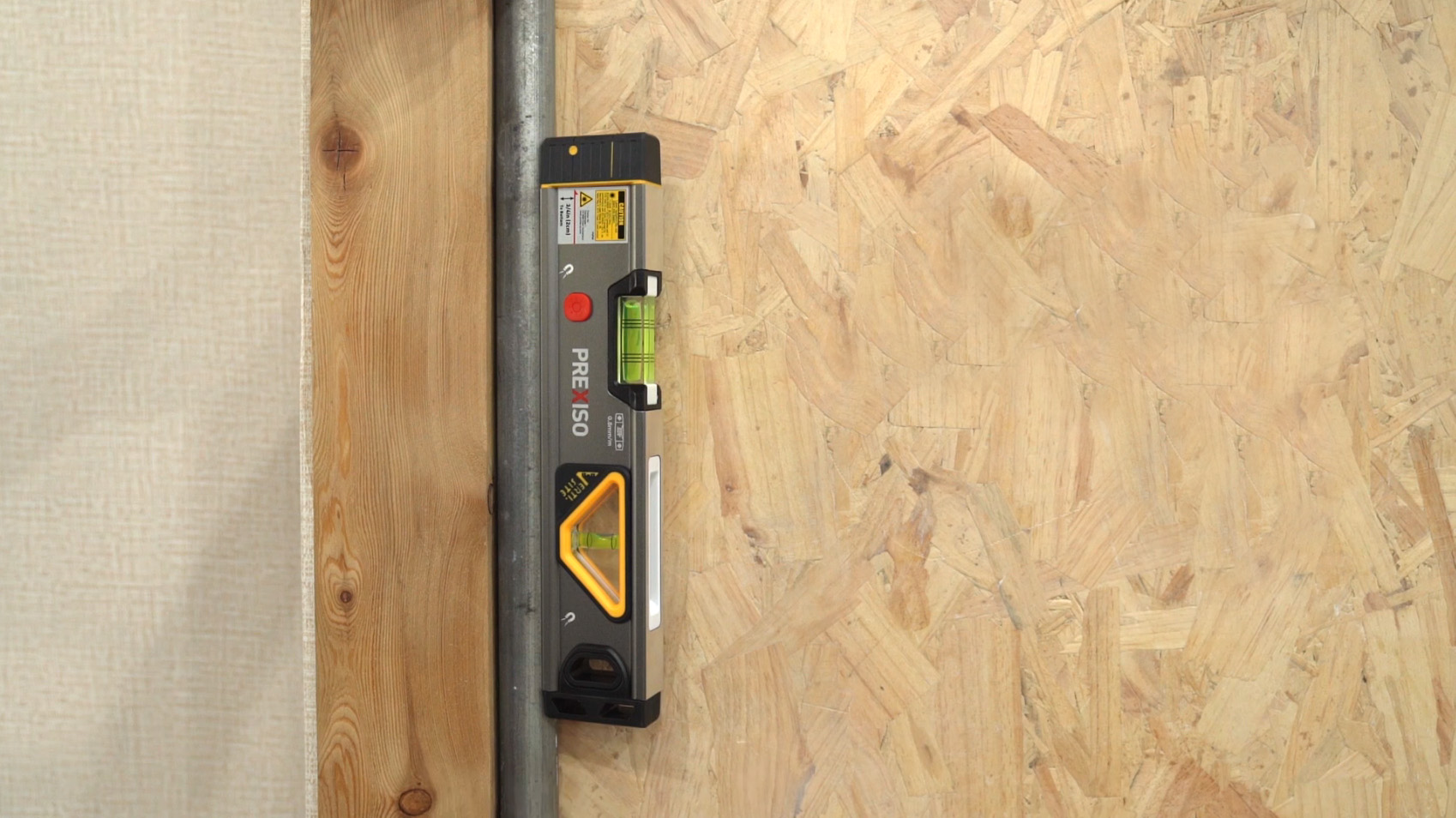

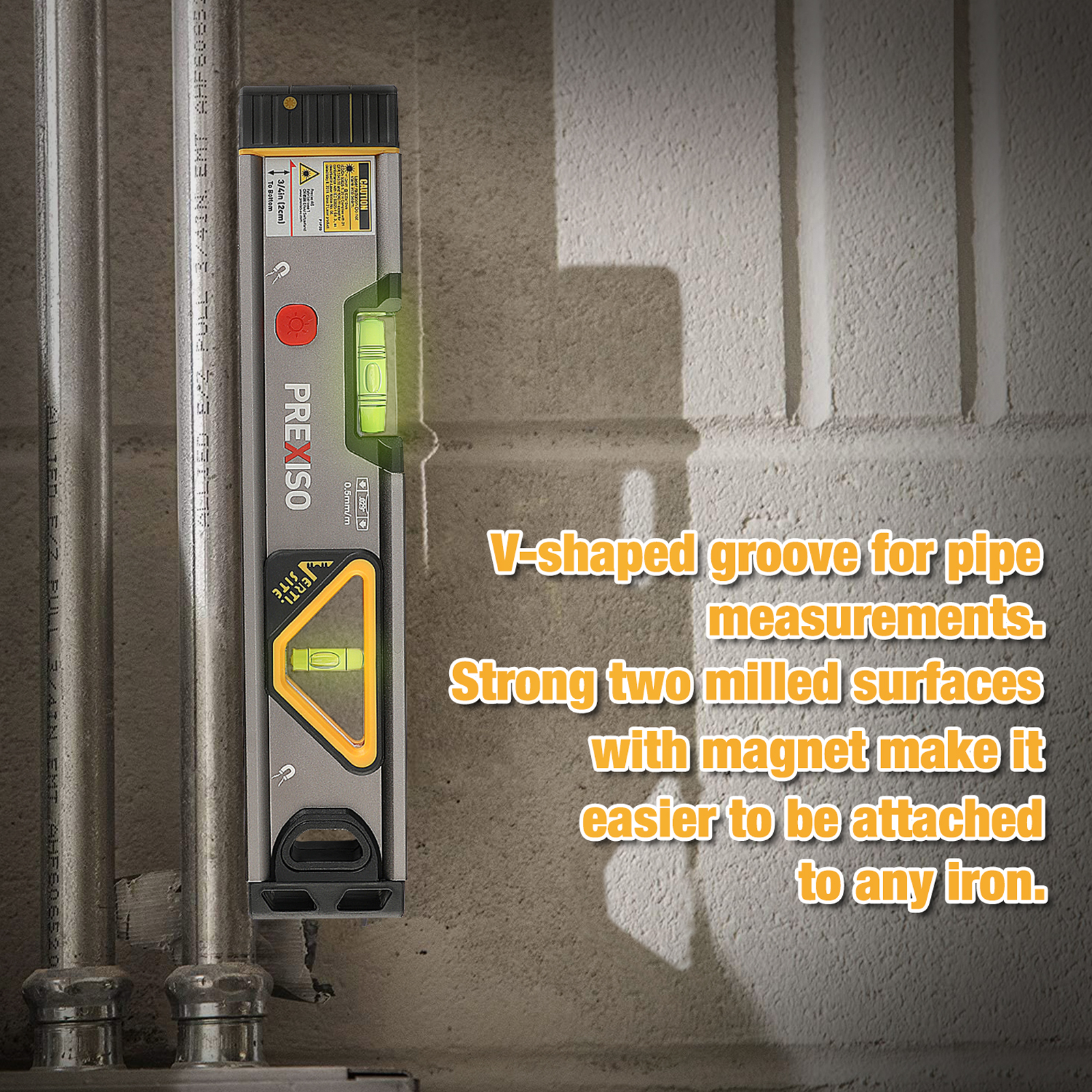

●Measurement surface with V-shaped groove for pipe measurements.
●Leveling base with rare earth magnets for efficient alignment.
●Compact design and one-button operation.

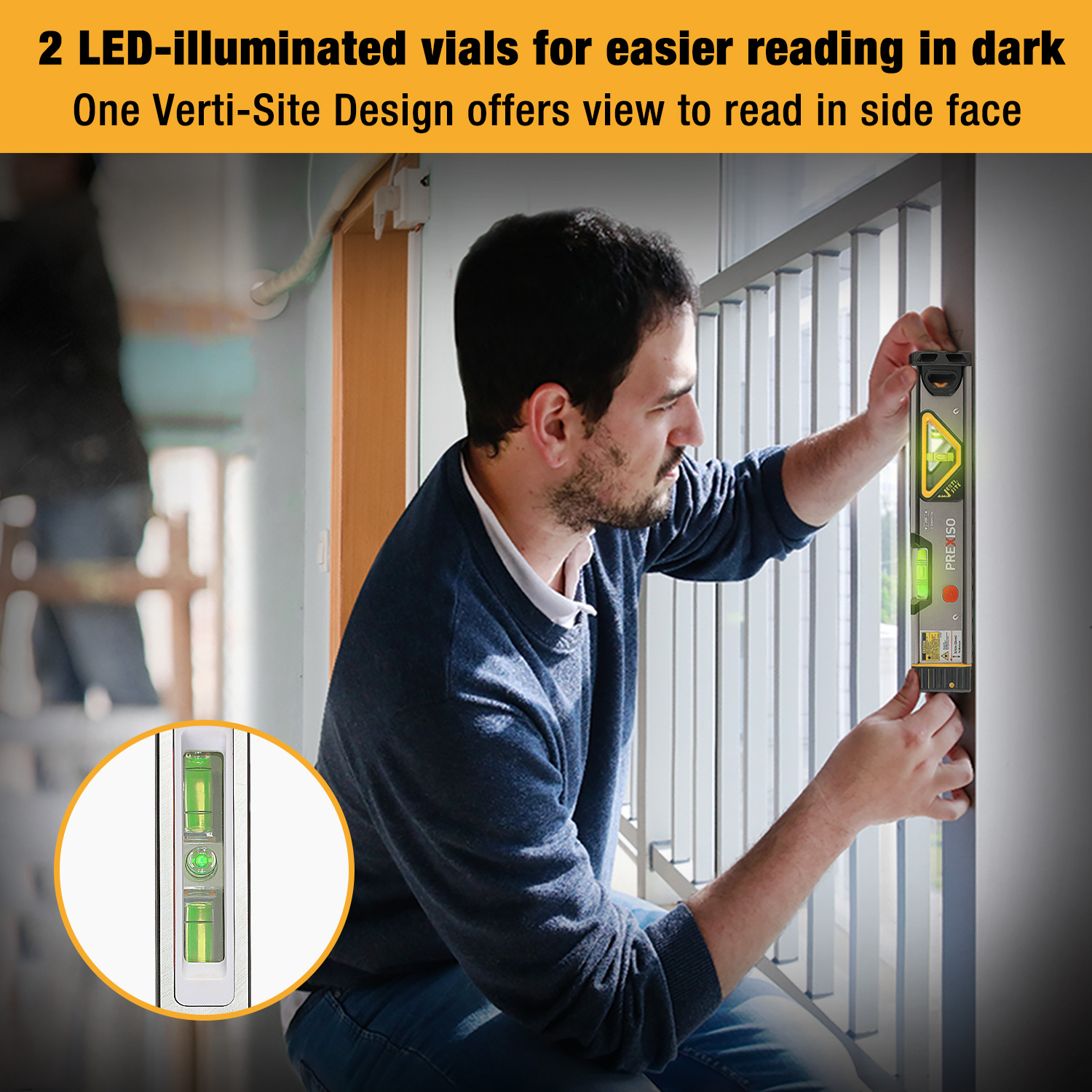

●The bubble vial LED lights are convenient for tasks in dark area.
ModelP1P20
DetailSPEC. sheet

Range

Line: 10M; Point: 30M

Laser accuracy

(line & point)

±5mm@10m

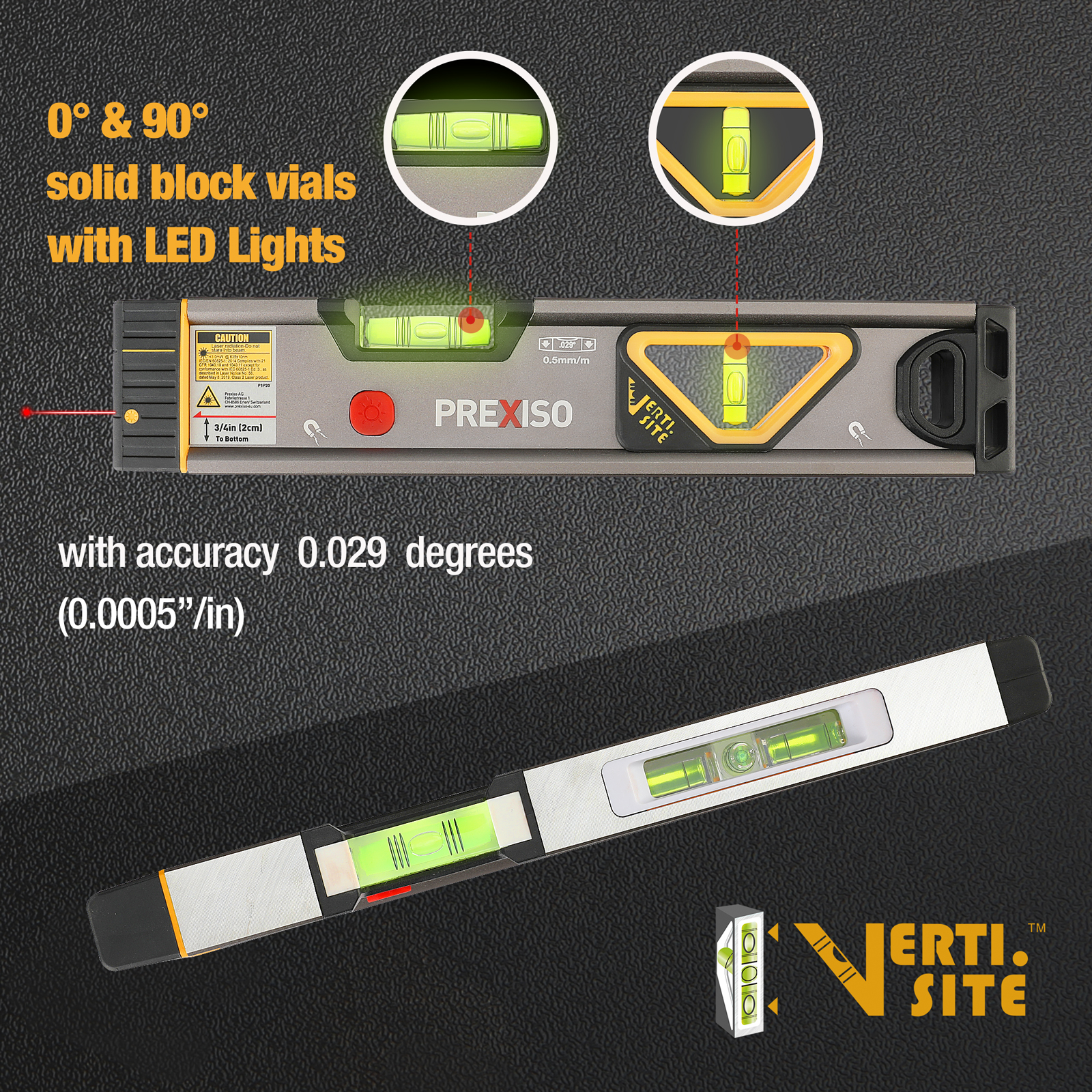

Vial accuracy

±0.5mm@m(leveling base )

±1mm@m(turned-over)

Laser Diode
Class 2, 35nm±10nm, <1mW

Operating temperature

0ºC to 40ºC(32ºF to104ºF)

Batteries

2 x AAA alkaline batteries

Dimension

22.4x13.2x17.6cm(8.8 x 5.2 x 6.9 in)

Batteries

2 x AAA alkaline batteries

Weight

0.39kg(0.859lb)

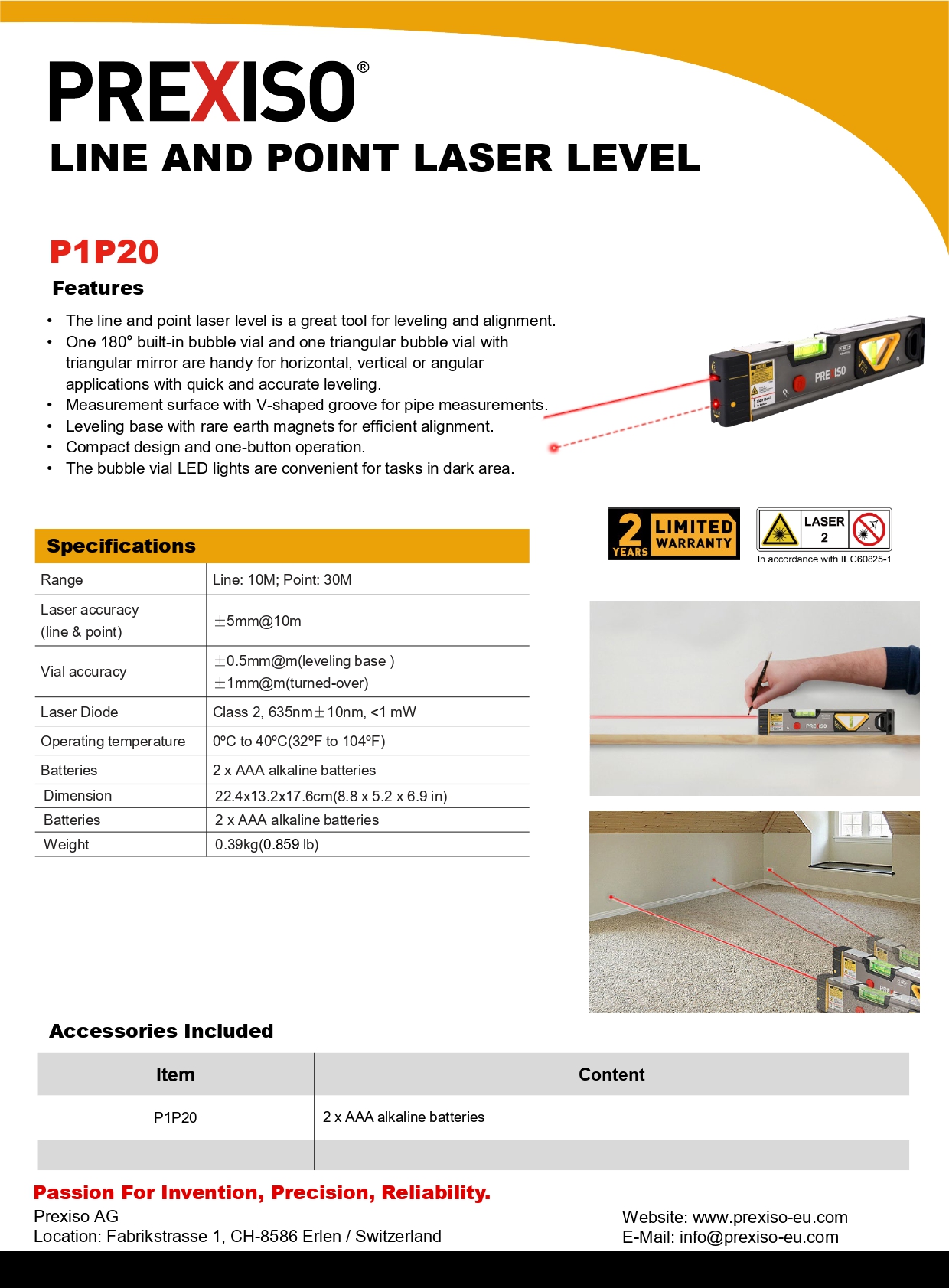

20240902 - PREXISO UPDATED SPEC SHEET P1P20_page-0001.jpg
