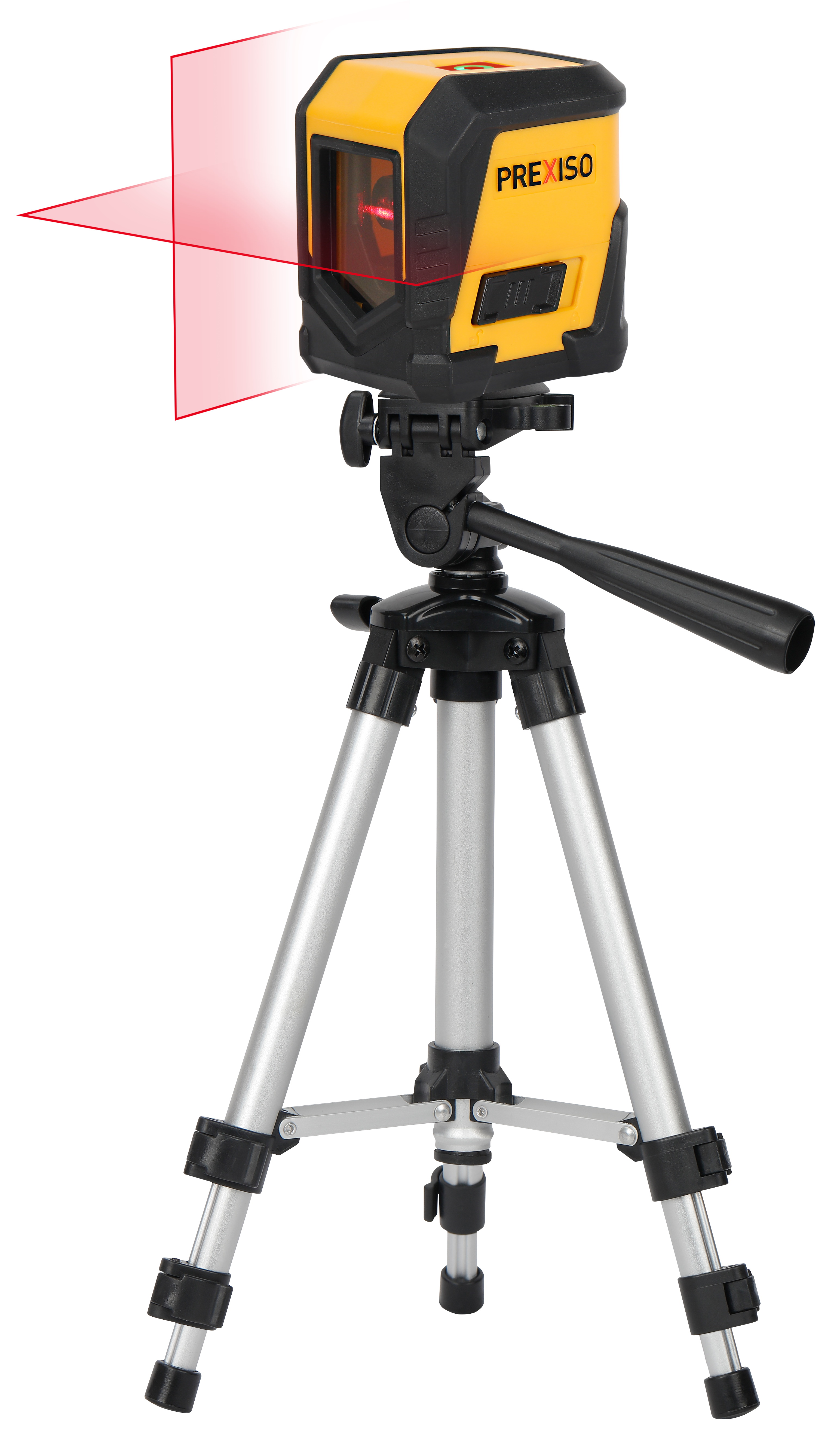

Red Beam Self-leveling Cross Line Laser Level With Tripod-PLC10UT

● Self Leveling: projects two bright lines (horizontal & vertical ) onto flat surfaces and levels in few seconds.
● One-button operation: easily switch the laser lines and turn it on and off.
● Can be wall or tripod mounted for quick and easy setup with ¼”-20 screw
● Smart Pendulum System — Self-levels and indicates out-of-level condition; locks when switched off

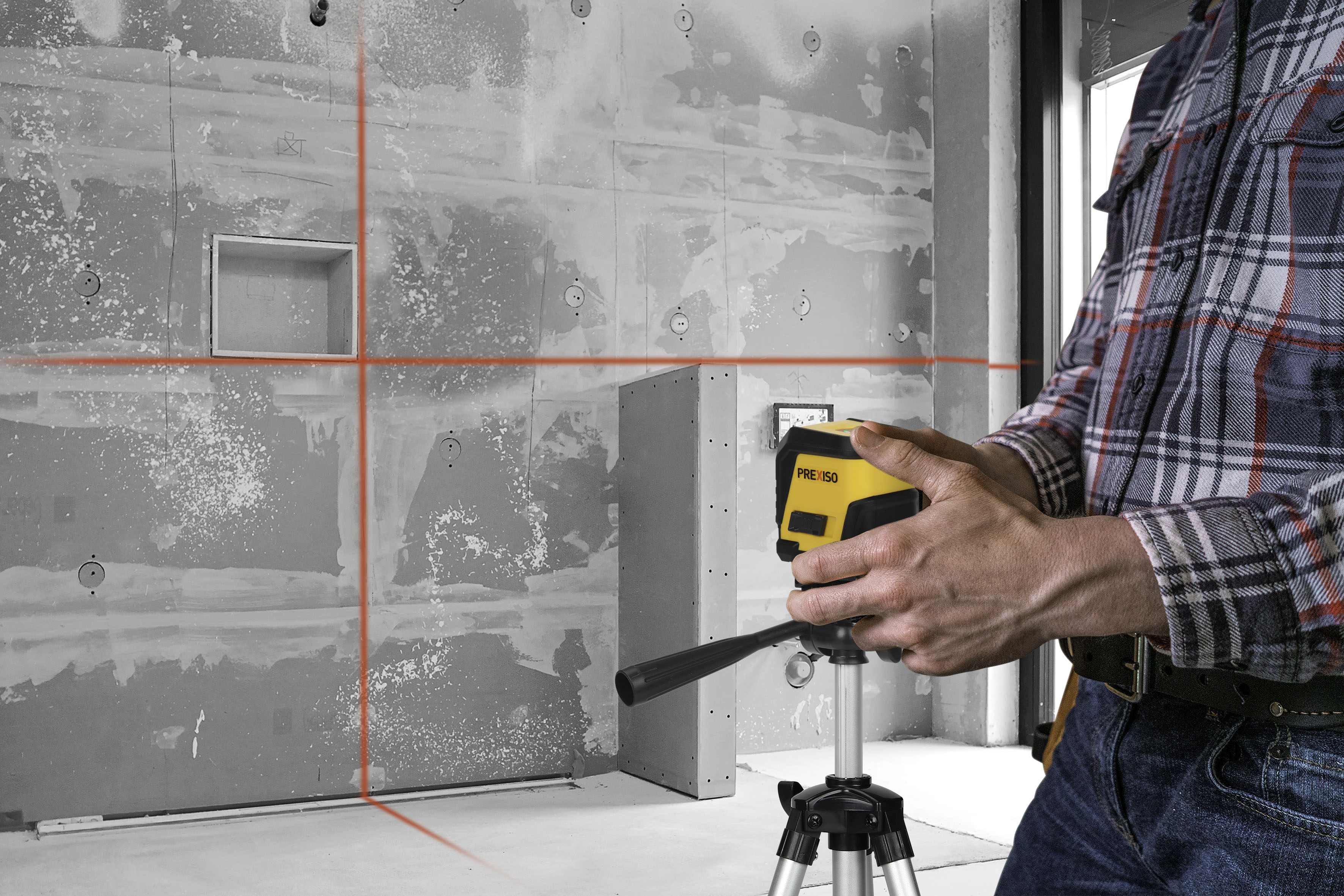

● Manual Mode — Locks lines for use at any angle





Model:PLC10UT
DetailSPEC. sheet

Measuring range

30FT/10M

Accuracy

±5/16”@30FT(±8mm@10M)

Laser Diode

Class 2, 635nm±5nm, <1 mW

Mount Threading

1/4"–20

Operating temperature32ºF to 104ºF (0ºC to 40ºC)

Battery

2xAA alkaline batteries
Dimension

2.8 x 2.5 x 3.2 in (73 x 64 x 82mm )

Weight

0.49lb(0.22kg)

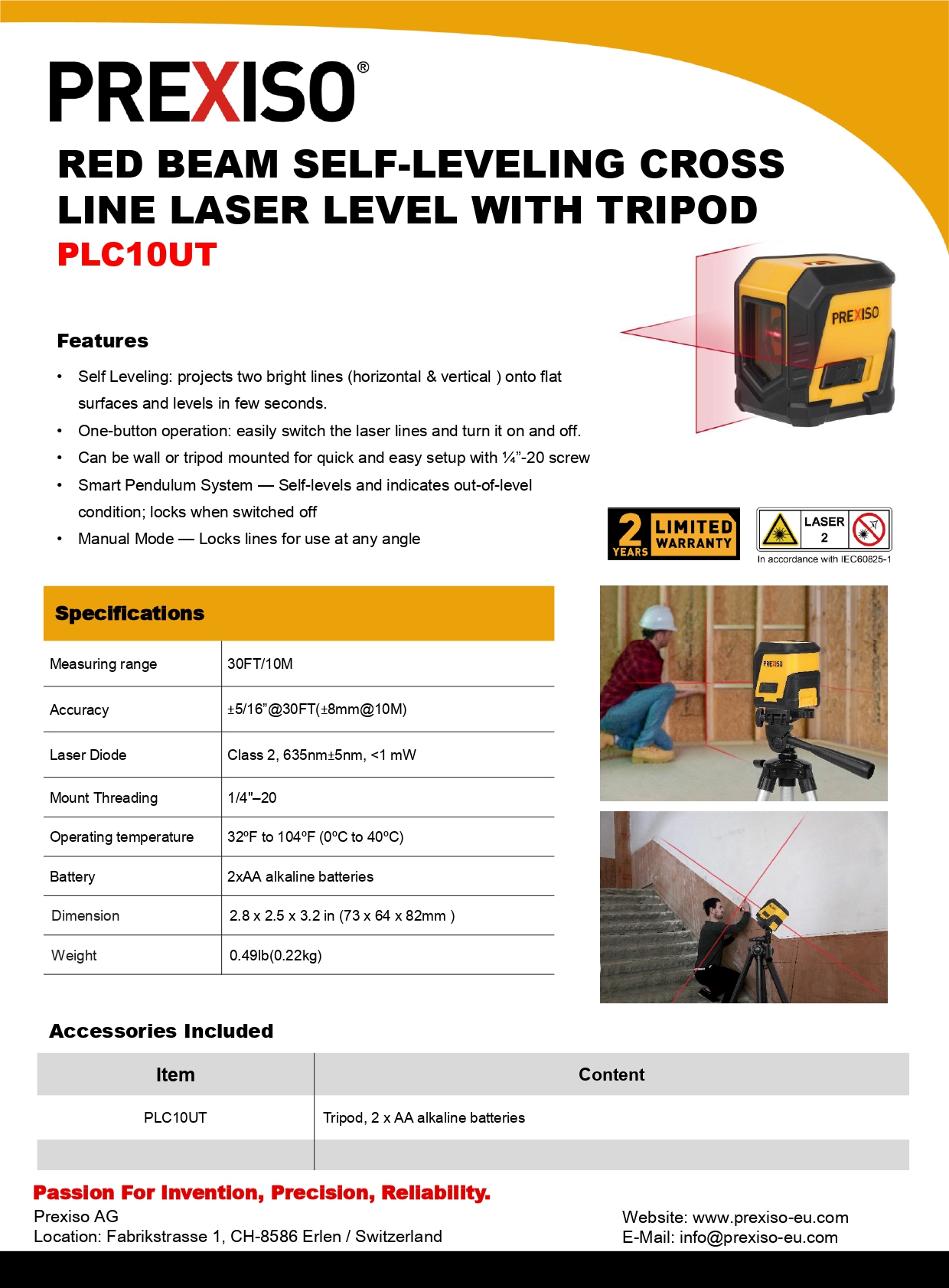

20240902 - PREXISO UPDATED SPEC SHEET PLC10UT.jpg
