32X Automatic Optical Level

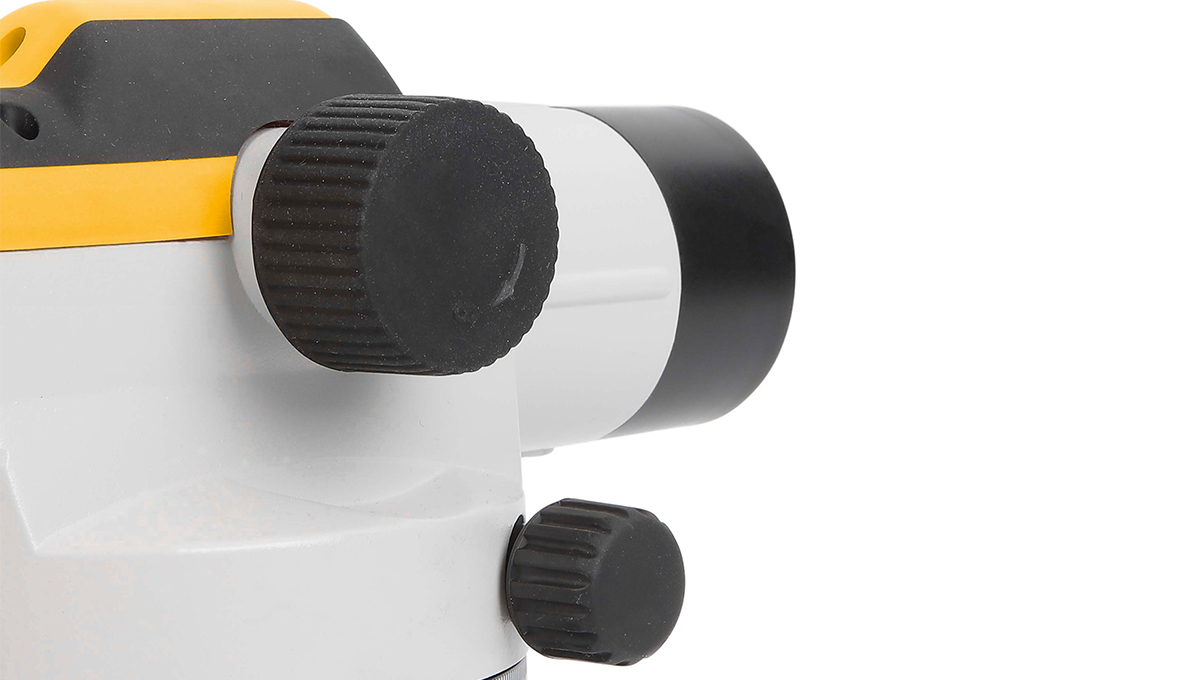

• Features a large focusing knob for easy alignment.

• Fast aperture ensures a sharp image of the target.

• Target collimator for rough alignment.

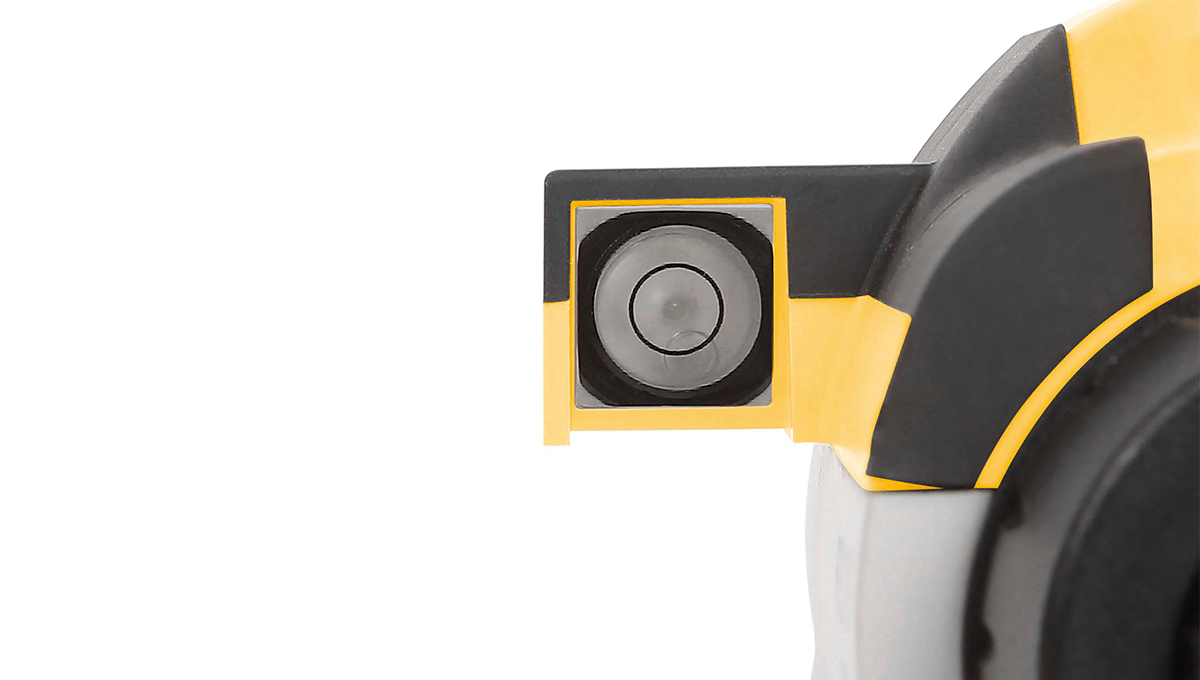

• Penta prism makes it easy to read the circular vial.

• Erect image.

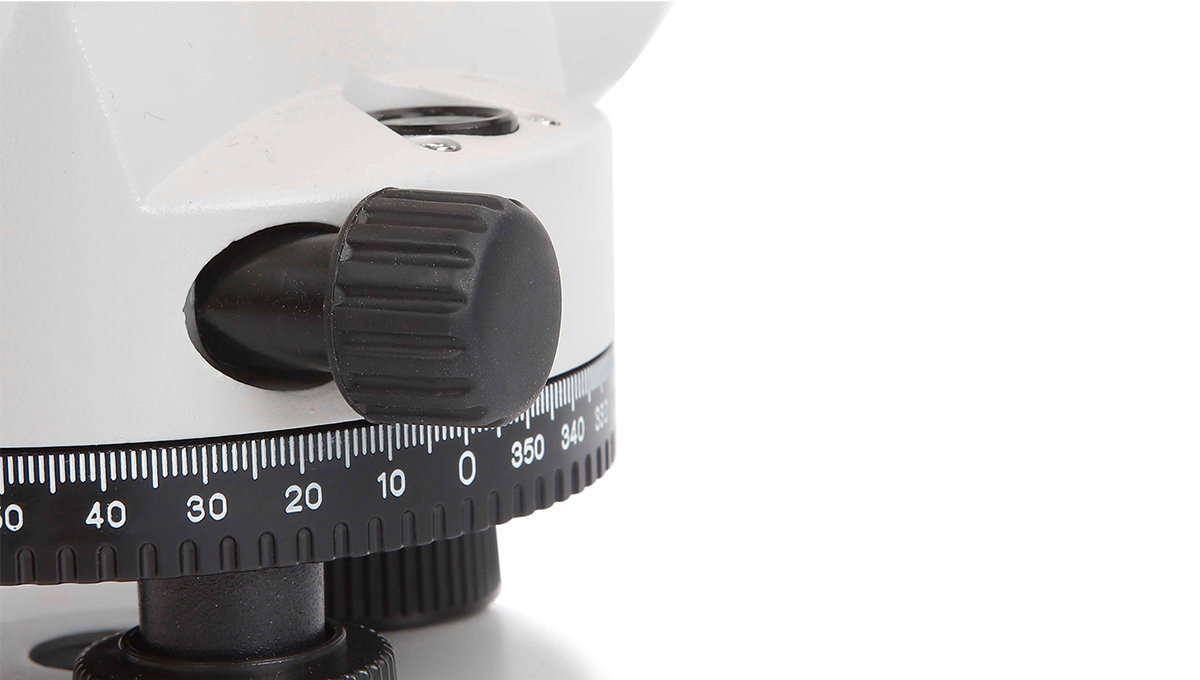

• Endless gon/angle setting using knobs with friction-braked rotation.

• Magnification: 32X

Net weight 1.48kg
Tool size 23x13x14cm
Tripod mount thread 5/8"
Degree of protection IP54(dust and splash water protected)
Graduation interval 1°or 1 gon
Graduation 360°
Bubble sensitivity 8'/2mm
Working range ±15'
Stadia addition
Stadia ratio 100
Field of view 1°30'
Short focusing distance 0.3m
Image erect
Standard deviation for 1km double run leveling 1.0mm
Compensator setting accuracy ±0.3"
Clear objective aperture 36mm
Leveling accuracy 1.6mm/30m
Working range 120m
